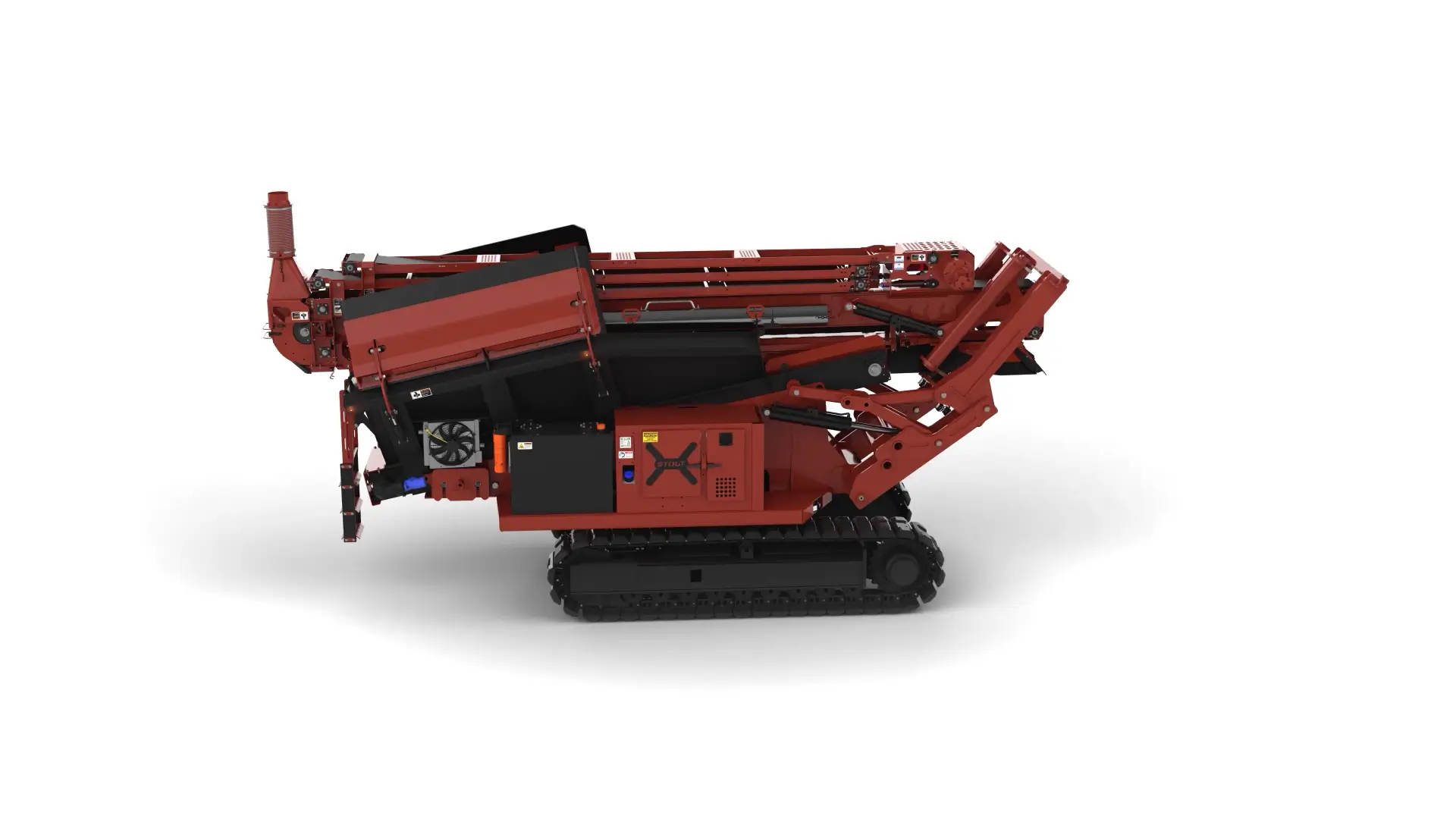

TX-50 Dimensions
Versatile, PowerfulTrack Conveyor
- Width: 8 ft.
- Height: 11 ft.
- Length: 24 ft.
- Operating Weight: 36,000 lbs.

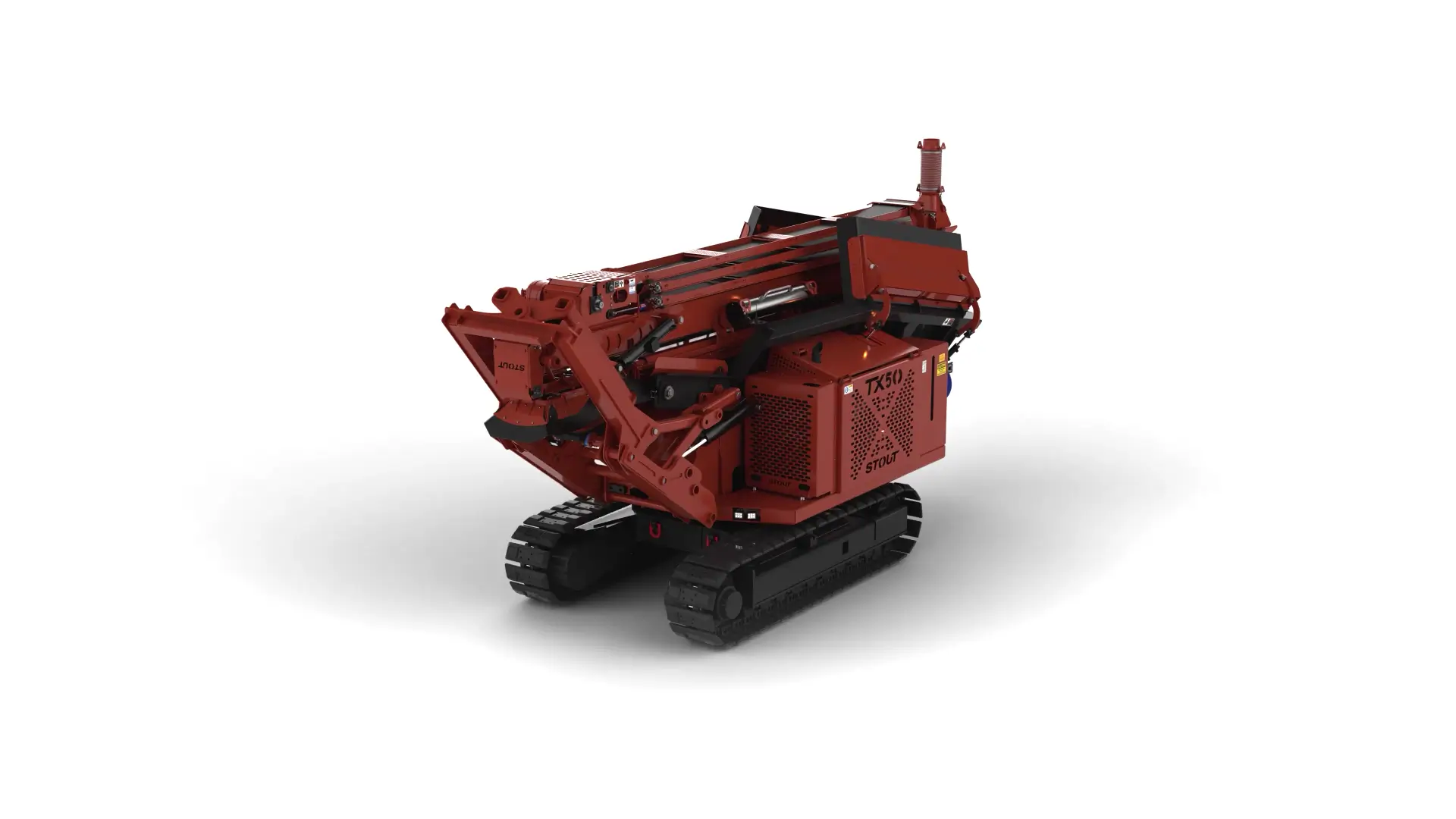

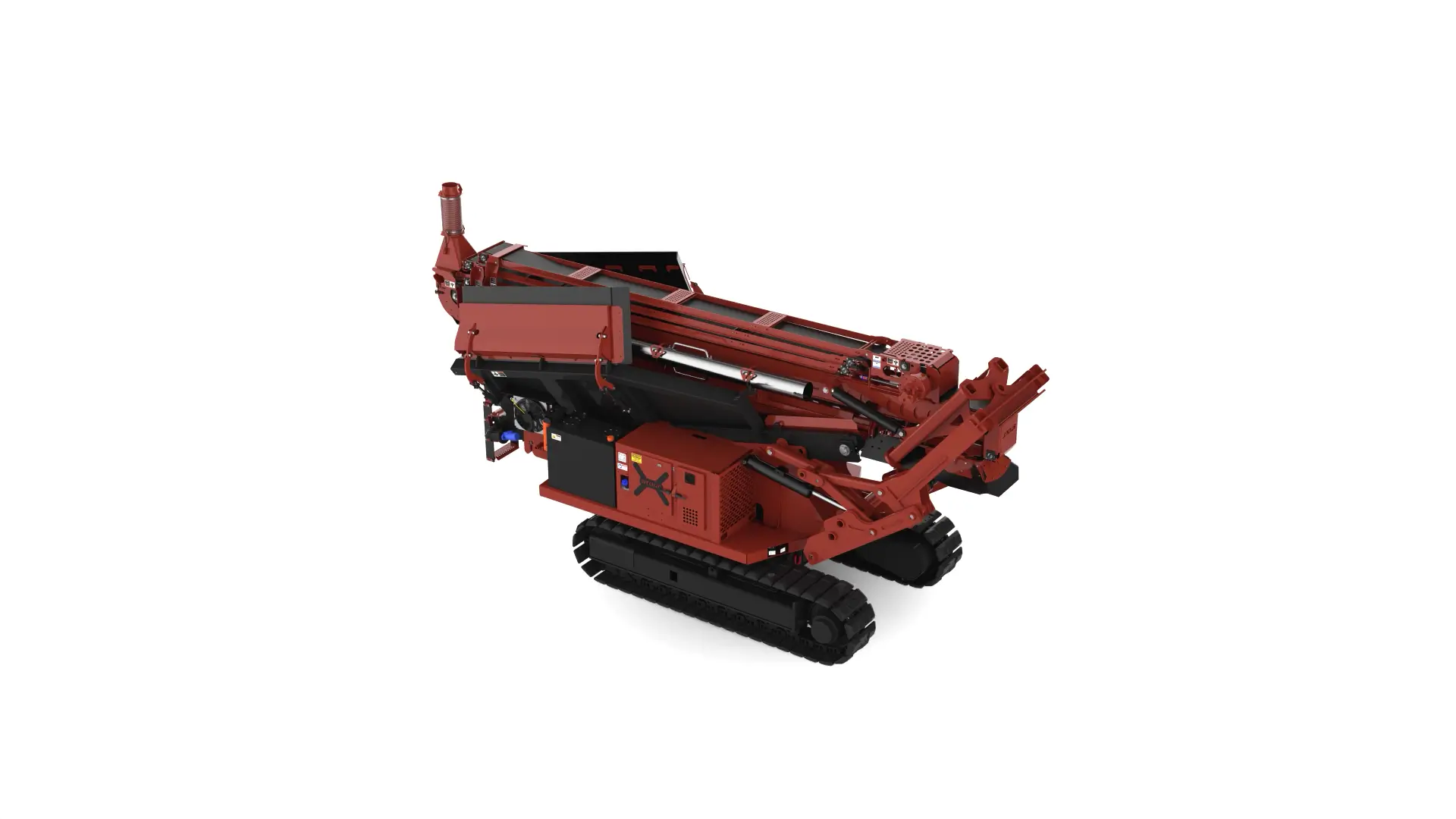

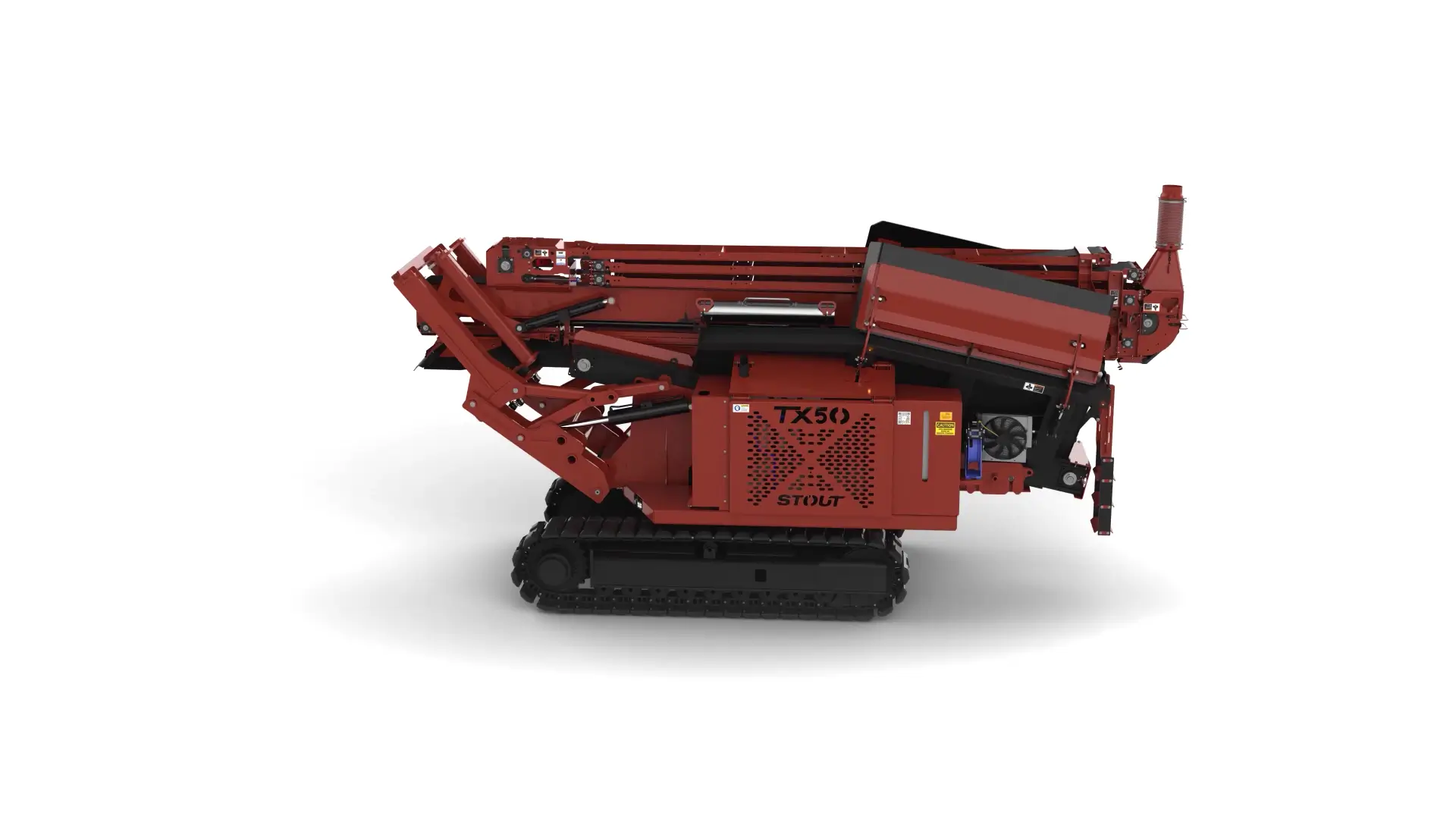

TX-50 Track Conveyor

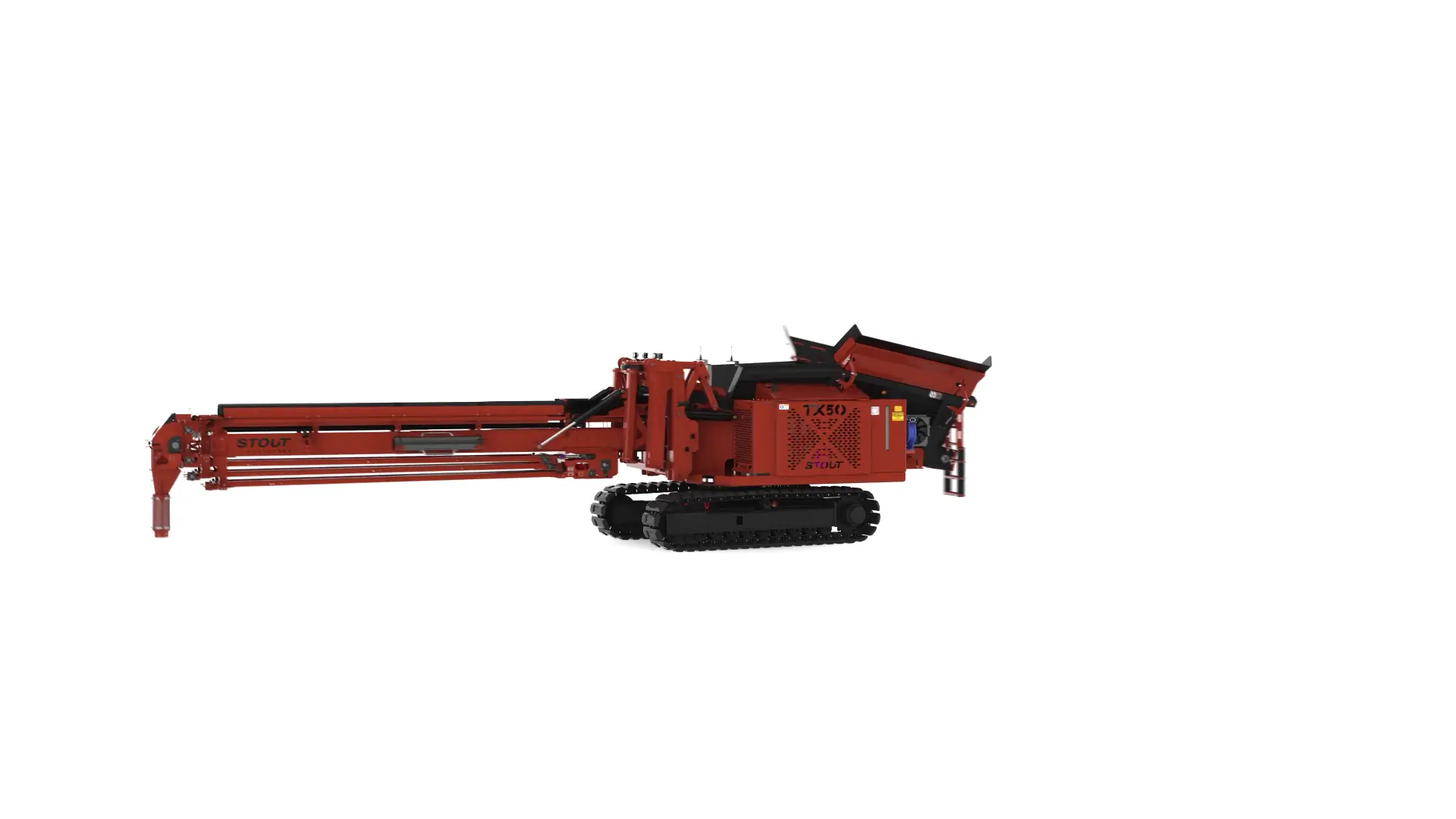

TX-50 Mobile Track Conveyor Specs
A Track Conveyor That Makes Hard Jobs Look Easy.
The TX-50 comes loaded with everything you need for remote jobs, tight sites, and rugged terrain.
Our mobile track conveyor is packed with 80 feet of slinging distance, more range of motion than any track conveyor in its class, and boom rotation that’s a full 90 degrees. With the ability to sling 2.5 cubic yards per minute, the TX-50 is made to outwork, outlast, and outperform the competition.

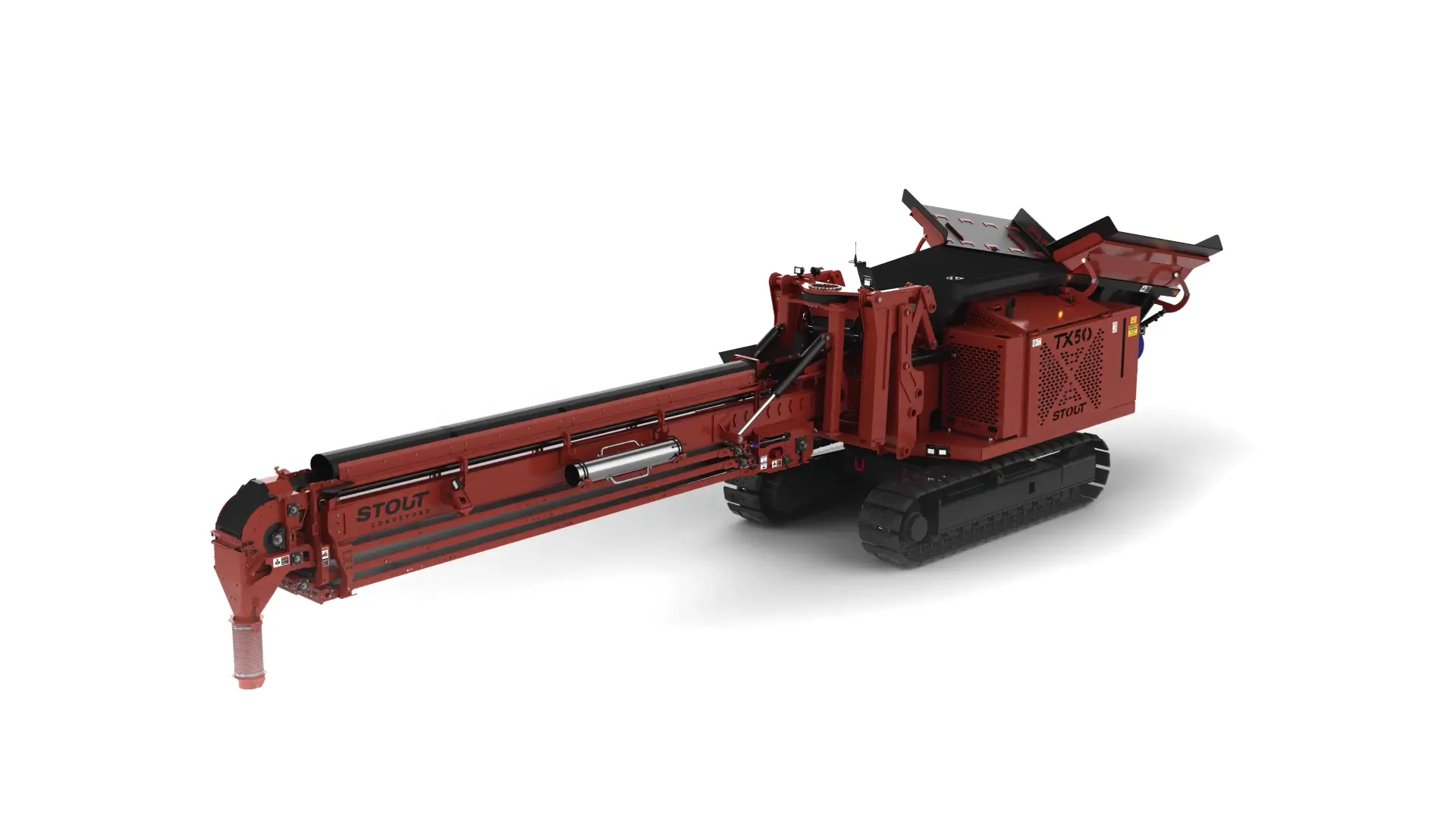

Primary Conveyor
- Tungesten Carbide belt scraper system for dependable belt cleaning.

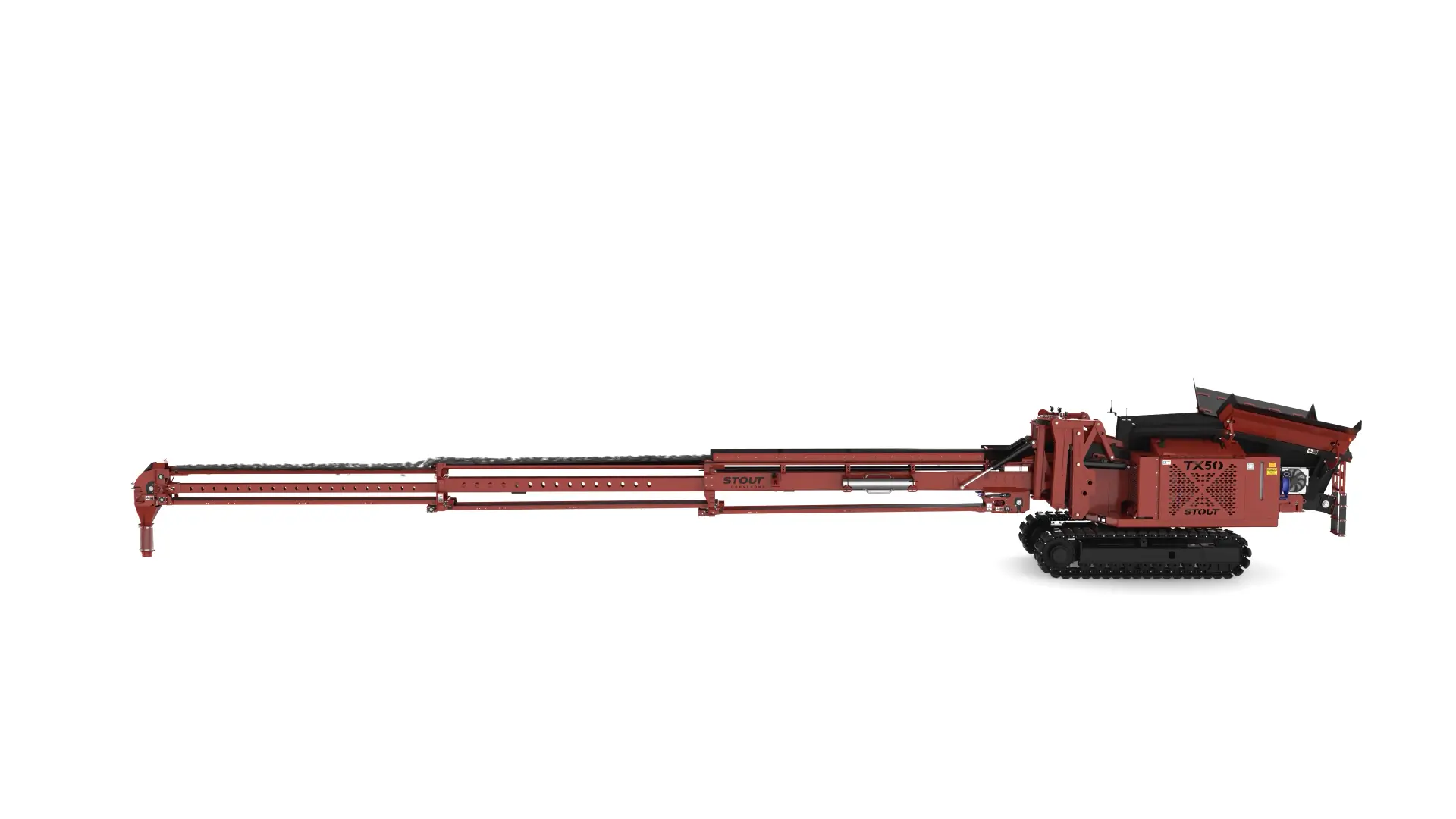

- 50'+ horizontal telescoping reach.
- 80' slinging distance.
- 14" conveyor belt with vulcanized splice.
- Operating height of 10'.
- Belt rides on a roughing frame design with UHMW rails for reduced idler roller maintenance.
- Maximum observed performance: 2.5 cubic yards per minute.
- Variable belt speed 0-100%.
Chassis
- All-steel frame with expanded metal decking
- Full-access engine and control systems for ease of service
- Open and accessible routing for hydraulic and fuel hoses for ease of maintenance
- Electric over the hydraulic braking system
Feed Hopper
- 5cy Standard - 7cy with wings.
- Hydraulic folding wings.
- Chain driven 24" feed belt.
Power
- 172 HP Cat Engine.
- Hydraulic closed loop drive.
- Circuit & open loop function circuit.
System Controls
- R/C unit with proportional functions allowing for fine control.
- Redundant manual controls available at operators station.
- Independent variable speed control for feed and primary belts.
Versatile, Powerful
Operating Dimensions
- Max Placing: 60 ft.

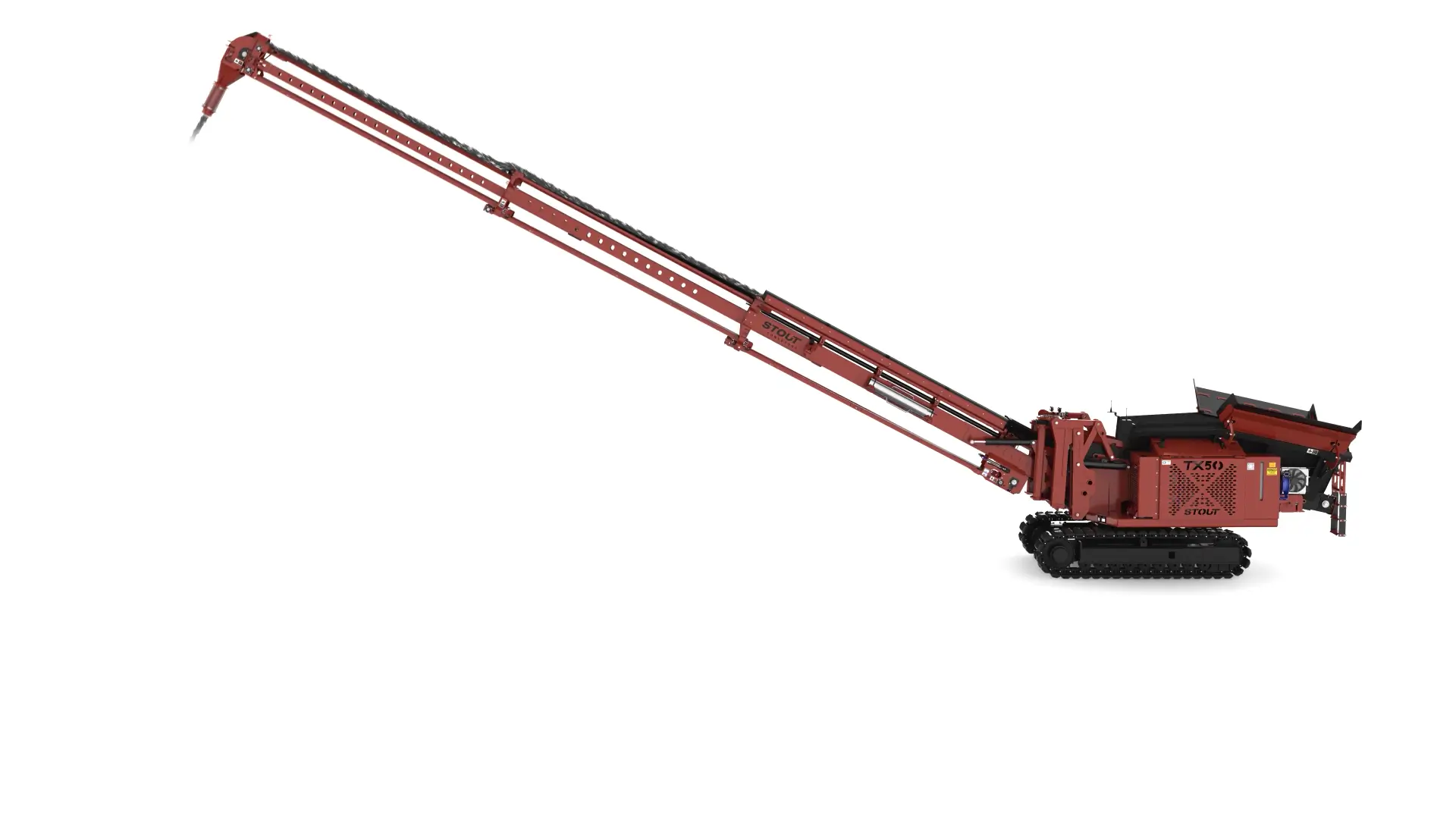

- Max Pitch: 45°
- Down Angle Pitch: -10°
- Boom Rotation: 90°
- Machine Rotation: 360°
Undercarriage
- Rubber Pro Tracks.
- 8' Track Width.
- Travel Speed: 3.5 MPH.
Features
Versatility
When it comes to versatility, you’ll be hard-pressed to find a conveyor system that outperforms the ability of the TX-50. Able to conquer any terrain, fit in tight spaces, and cover 80′ feet of slinging distance, you’ll look like a hero.
Ease-of-use
Like all our Stout Conveyors models – a simple and logical control layout makes for a quick learning curve. All functions are clearly labeled allowing for an operator to go from learning to earning.
Durability
The TX-50 is built to ensure dependable operation with tried and true components. You’ll get the same proven approach to components as with all our other machines.
Mechanic Friendly
All body panels surrounding the engine/control compartment can be removed to allow for the best possible access to complete service work.
Clean
Mining-grade Tungsten Carbide belt scrapers assure you belt cleaning every time and every ounce of material is placed where it belongs.
Power
The TX-50 delivers smooth flow and serious reach. With 80 feet of slinging distance when fully extended and enough power to place 2.5 cubic yards per minute, you’ll be making even hard jobs look easy.

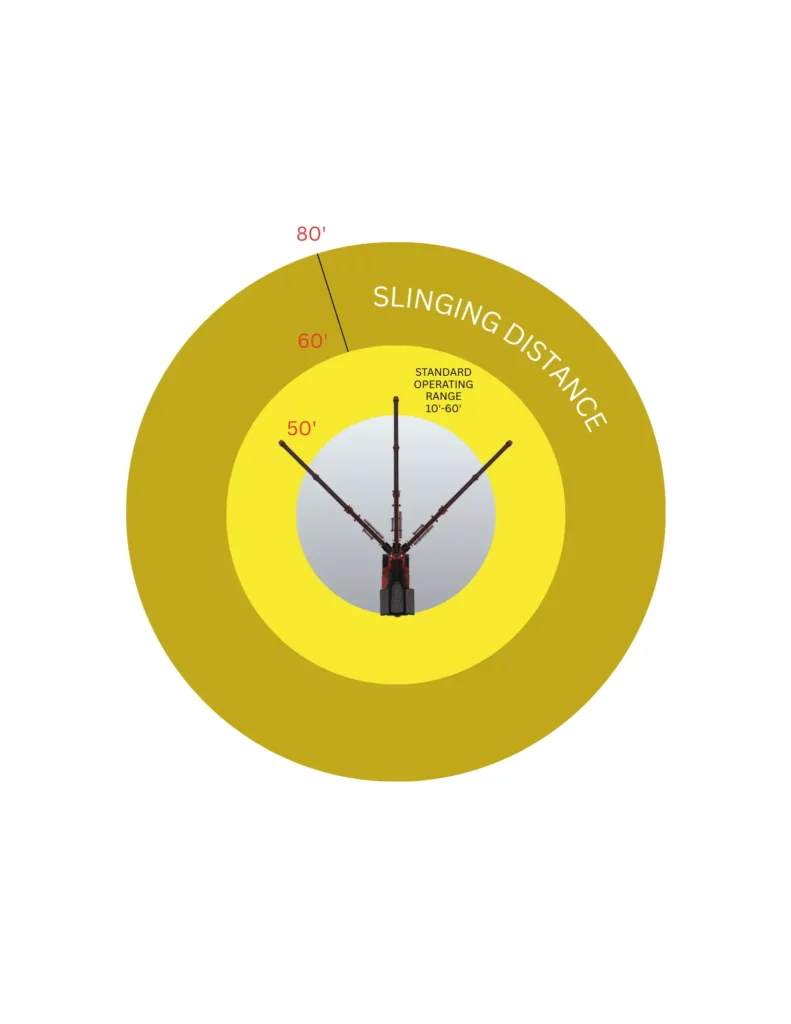

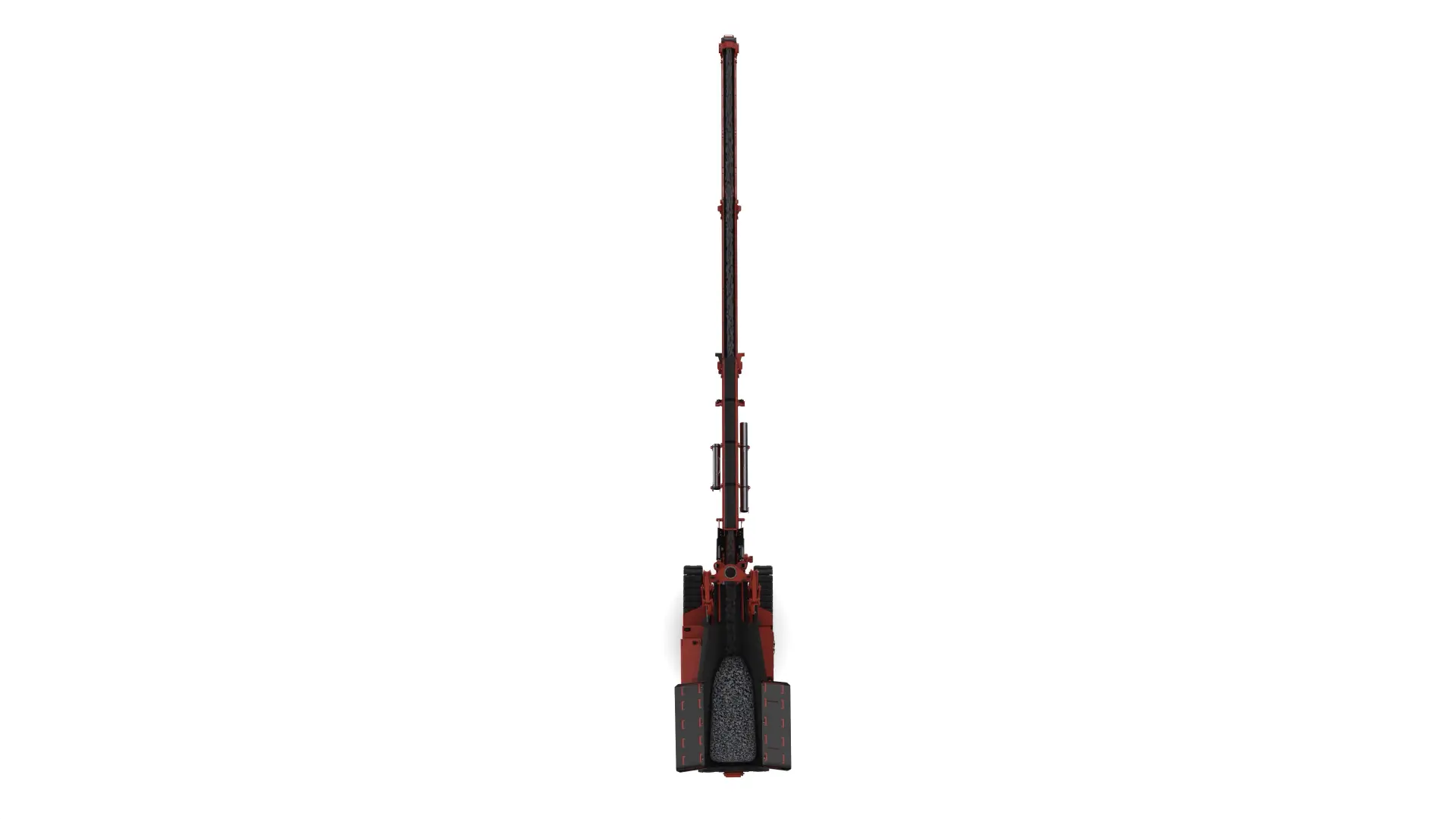

Coverage Area
80' Slinging Distance
With 360-degree rotation capability, 90-feet boom rotation, and 80-feet max slinging distance, not only is your coverage area enormous for a track conveyor, but your time efficiency is as well.
